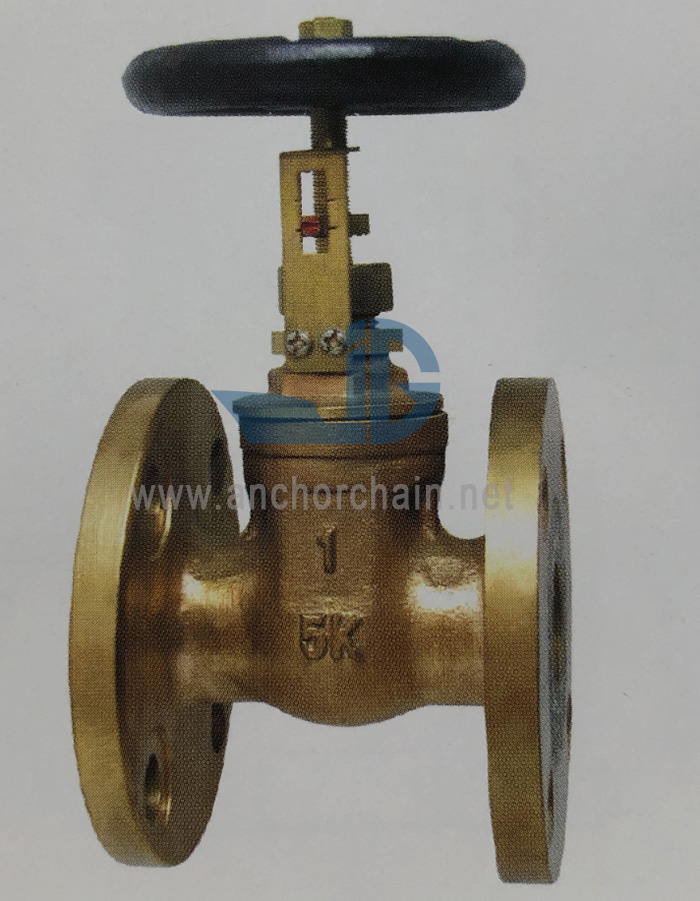

JIS F 7367 Bronze 5K Resurgens Stem Type Gate Valves

JIS F 7367 Bronze 5K Resurgens Stem Type Gate Valves
Porta valvae marinae Bronze JIS 7367 oritur caulis typus portae valvae.
Design Standard: JIS F7367-1996
Test Standard: JIS 7400-1996
Hydraulic Test Pressure: Body- 1.05Mpa, Sedes-0.7Mpa
Linge magnitudine ut per JIS B2220 - 5K

Materia principalis:
Corpus: Bronze (BC6)
Bonnet: Bronze (BC6)
Disc: Bronze (BC6)
Stem: Brass (C3771BD)

Gasket: non-asbesto

Praecipua Size List (mm):

IMPA CODEX	Magnitudo	L	D	C	No of Bolt Hole	h	t	H	D2
750951	15	90	80	60	4	12	9	175	80
750952	20	100	85	65	4	12	10	200	100
750953	25	110	95	75	4	12	10	220	125
750954	32	130	115	90	4	15	12	250	125
750955	40	140	120	95	4	15	12	290	140

Marinus Bronze Gate Valve JIS F7367 5K
Categoria:JIS Marine Porta Valve
Materia: Aes
Standards: JIS F7367
Testimonia: CCS, BV, GL, NK, RINA, ABS, DNV, LR, IRS, VR
IMPA Code:750951~750955
Ps Price: Latest Price Now
Locus Origin: China
