Specification of Kevel Chock: Exemplar Type: Kevel ChockDimensiones (semis): 24†30†36†42†48â€

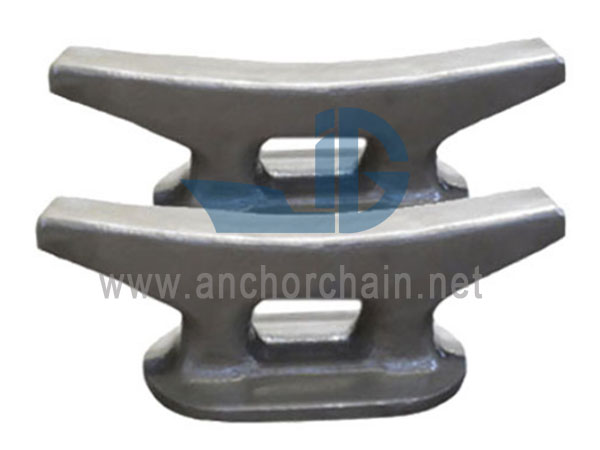

Specificationof Kevel Chock:
Exemplar Type: Kevel Chock
Dimensiones (inches): 24†30” 36” 42” 48”
Materia: Projice Steel
Testimonium: CCS/BV/LR/ABS/GL/RMRS/DNV/KR
Drawingof Kevel Chocks:
|
Dimensio (in) |
|||||||||||||||
|
A |
B |
C |
D |
E |
F |
G |
H |
K |
L |
M |
N |
O |
P |
R |
T |
|
24” |
3 |
4-1/2 |
17 |
6 |
1-1/2 |
5-1/2 |
11 |
1-1/2 |
1/2 |
8 |
2 |
1-1/2 |
9/16 |
1 |
3/4 |
|
30” |
4 |
5-5/8 |
20-1/4 |
7 |
2-3/8 |
6-7/8 |
14 |
3-1/4 |
1/2 |
9-1/2 |
2 |
2-3/8 |
1-1/4 |
1-3/8 |
7/8 |
|
36” |
5 |
6-3/4 |
23-1/2 |
8 |
3-1/4 |
8-1/4 |
17 |
4 |
9/16 |
11 |
2-1/2 |
3-1/4 |
1-1/2 |
1-3/4 |
1 |
|
42” |
6 |
7-7/8 |
26-3/4 |
9 |
4-1/8 |
9-5/8 |
20 |
4-3/4 |
5/8 |
12-1/2 |
2-3/4 |
4-1/8 |
1-7/8 |
2-1/8 |
1-1/8 |
|
48” |
7 |
9 |
30 |
10 |
10 |
11 |
23 |
5-1/2 |
3/4 |
14 |
4 |
5 |
2 |
2-1/2 |
1-1/4 |
