Open Chock JIS F-2006 Typus SCOpen scholorum duo genera sunt: JIS F-2006 genus SC et JIS F-2006 genus FC.

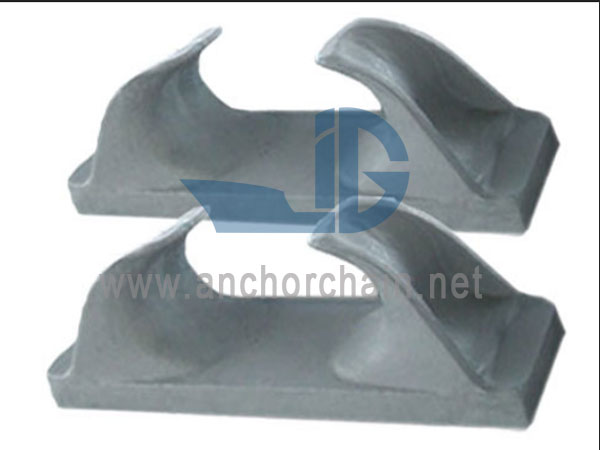

Open Chock JIS F-2006 Type SC
Choci aperti duo genera habent: JIS F-2006 typeSC et JIS F-2006 genus FC. Typus SC proicitur steel.Type FC ferrum proicitur. Ornare insidentes Bothtypes. Nos varias chocks retinacula praebemus. Si you'€™re in scholis interponitur, placet liberum contactus nos.
Specification:
Exemplar Type: JIS F-2006 Type SC
Materia: Projice Steel
Nominal Size: 150mm~ 400mm
Pondus: 11kg~ 98kg
Testimonium: CCS,DNV,ABS,BV,LR,RS,KR
Drawingof Open Chock JIS F-2006 SC:
JISF-2006 Type SC (Caste Steel):
|
Nominal Size (mm) |
Dimensiones (mm) |
Mass (kgs) |
Diae. De Rope |
||||||||
|
L |
L1 |
L2 |
B |
H |
H1 |
H3 |
Wire 6*24 |
Cannabis |
P.P |
||
|
150 |
150 |
280 |
60 |
80 |
90 |
70 |
118 |
11 |
12 |
32 |
20 |
|
200 |
200 |
380 |
84 |
110 |
116 |
92 |
151 |
18 |
14 |
38 |
24 |
|
250 |
250 |
460 |
114 |
130 |
136 |
108 |
178 |
30 |
16 |
42 |
28 |
|
300 |
300 |
540 |
140 |
150 |
160 |
124 |
209 |
44 |
18 |
50 |
32 |
|
350 |
350 |
620 |
170 |
170 |
180 |
140 |
235 |
64 |
20 |
55 |
36 |
|
400 |
400 |
700 |
200 |
200 |
200 |
160 |
263 |
98 |
22 |
60 |
42 |
