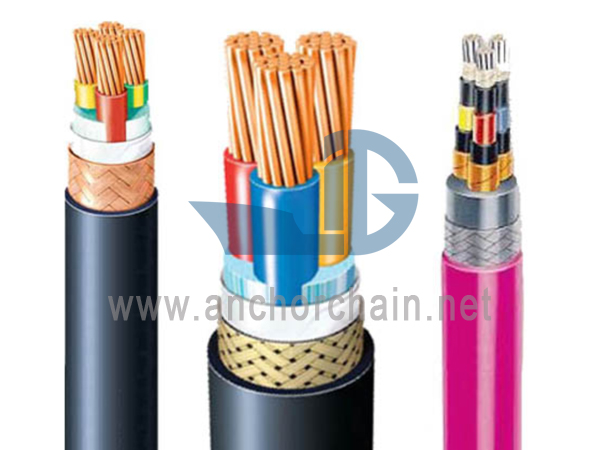

TIOITICI Low voltage Shipboard power and control cable

TIOITICI Low voltage Shipboard power and control cable
Halogen libera potentia, ditionis ac funes accensis navibus et suggestis litorum

Ob eius flexibilitatem etiam apta est cum spatium institutionis limitatur et/vel ad loca difficilia aditu
Apta locis in quibus praesidium contra electromagneticorum impedimentum (EMI) significationibus magni momenti est
Funis hic ad potentiam destinatur, ambitus accendit & moderatur usque ad 0.6/1kV.

Apta ad usum in applicationibus commercialibus marinis



TIOI/TICI humilis intentione potentiae et funis regiminis signa

- Design guide : IEC 60092-350 & IEC 60092-353
- Insulatio materialis: IEC 60092-351, XLPE
- Vagina materialis: IEC 60092-359, SHF1
- Flamma retardant : IEC 60332-1 & IEC 60332-3 Categoria A
- Halogen content: IEC 60754-1, 0.5%
- Fumus emissio: IEC 61034, 60%
- Cold bend/impact : CSA 22.2 N. 0.3 (-40°C / -35°C )



TIOI/TICI low voltage power and control fun construction

Classification Code Construction detail
Conductor
Planum filum aeneum subnutum sicut per IEC 60228, Classis 2
Insulation T XLPE as per IEC 60092-351
Cabling
- Insulated conductores erunt cabled
- Flamma retardat & fillers non hygroscopic adhiberi potest
- Apta tape(s) applicari potest in nucleo cabled
- A Filler applicari potest ad Cable circularem obtinendum
Interiorem vaginam I SHF1 ut per IEC 60092-359
Armor O(C)
- Braida planae annatae filum aeneum (o) vel filum galvanized ferro (c)
— Coverage densitatis : Min. 90%

Exterior vaginae I SHF1 ut per IEC 60092-359, vagina exterior color: Black
Nota:
Alter color vaginae et velit, cum emptor exigitur.
Filum aeneum per IEC 60228 subductis fodiebatur, Classis 2 locum habere potest cum emptor exigitur.



TIOI/TICI low voltage power and control funem service conditions

Minimum institutionem temperatus -20 °C
Maximum conductorem temperatus +90 °C
Operating Temperature min. -40 °C, max. +80 °C
Exterior vaginae color nigreos
Standard IEC 60092-353
                                                  Approbatio maxima societas classificationis
 ApprobatioAmerican Bureau of Shipping, Bureau Veritas, Det Norske
Veritas, Lloyds Register and Germanischer Lloyd

Packaging tympana
