Turnbuckle plerumque Finxit, Free composuerunt et abiecerunt.
Superficies turnbuckle originalis coloris, galvanizati, calvanizati calidi
Materia est 45# Steel, Q235

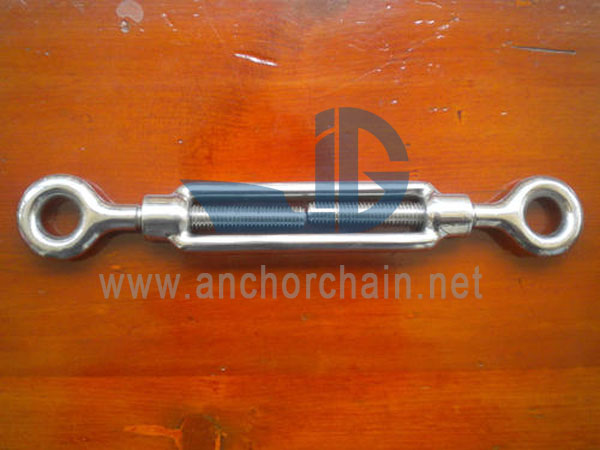

US Type Turnbuckles cum Oculo et EyeTurnbuckle plerumque fictae, Free ementitae et Casting.The superficies turnbuckle originalis coloris, galvanised, calidum galvanizedMaterial est 45 # Steel, Q235
Turnbuckle plerumque Finxit, Free composuerunt et abiecerunt.
Superficies turnbuckle originalis coloris, galvanizati, calvanizati calidi
Materia est 45# Steel, Q235
| Thread Dia & Take Up | WLL(lbs) | Pondus (li) | Dimensiones (in) | ||||||||
| A | J Open | K Clausa | M Open | N Closed | R | S | X Closed | BB | |||
| 1/4x4 | 500 | 0.29 | 0.25 | 11.94 | 7.94 | 12.38 | 8.38 | 0.81 | 0.34 | 1.76 | 4.07 |
| 5/16x41/2 | 800 | 0.48 | 0.31 | 13.92 | 9.42 | 14.48 | 9.98 | 0.95 | 0.44 | 2.2 | 4.58 |
| 3/8x6 | 1200 | 0.75 | 0.38 | 17.56 | 11.56 | 18.24 | 12.24 | 1.13 | 0.53 | 2.48 | 6.1 |
| 1/2x6 | 2200 | 1.72 | 0.5 | 19.94 | 13.94 | 20.82 | 14.82 | 1.41 | 0.71 | 3.56 | 6.03 |
| 1/2x12 | 2200 | 2.63 | 0.5 | 32.23 | 20.23 | 33.11 | 21.11 | 1.41 | 0.71 | 3.54 | 12.36 |
| 5/8x6 | 3500 | 2.75 | 0.63 | 21.72 | 15.72 | 22.72 | 16.72 | 1.8 | 0.88 | 4.35 | 6.03 |
| 5/8x12 | 3500 | 4.12 | 0.63 | 34.06 | 22.06 | 35.06 | 23.06 | 1.8 | 0.88 | 4.34 | 12.39 |
| 3/4x6 | 5200 | 4.22 | 0.75 | 23.24 | 17.24 | 24.5 | 18.5 | 2.09 | 1 | 5.12 | 6.13 |
| 3/4x12 | 5200 | 6.12 | 0.75 | 35.64 | 23.64 | 36.9 | 24.9 | 2.09 | 1 | 5.09 | 12.59 |
| 3/4x18 | 5200 | 7.83 | 0.75 | 47.64 | 29.64 | 48.9 | 30.9 | 2.09 | 1 | 5.12 | 18.53 |
| 7/8x12 | 7200 | 8.83 | 0.88 | 36.7 | 24.7 | 38.2 | 26.2 | 2.38 | 1.25 | 5.79 | 12.16 |
| 7/8x18 | 7200 | 11.5 | 0.88 | 49.17 | 31.17 | 50.67 | 32.67 | 2.38 | 1.25 | 5.79 | 18.63 |
| 1x6 | 10000 | 9.62 | 1 | 26.24 | 20.24 | 28 | 22 | 3 | 1.43 | 6.5 | 6.18 |
| 1x12 | 10000 | 13 | 1 | 38.24 | 26.24 | 40 | 28 | 3 | 1.43 | 6.5 | 12.18 |
| 1x18 | 10000 | 16.3 | 1 | 50.24 | 32.24 | 52 | 34 | 3 | 1.43 | 6.5 | 18.18 |
| 1x24 | 10000 | 20.2 | 1 | 62.84 | 38.84 | 64.6 | 40.6 | 3 | 1.43 | 6.47 | 24.84 |
| 11/4x12 | 15200 | 19.9 | 1.25 | 42.14 | 30.14 | 44.38 | 32.38 | 3.59 | 1.82 | 8.49 | 12.06 |
| 11/4x18 | 15200 | 23.8 | 1.25 | 54.14 | 36.14 | 56.38 | 38.38 | 3.59 | 1.82 | 8.49 | 18.06 |
| 11/4x24 | 15200 | 27.8 | 1.25 | 66.7 | 42.7 | 68.94 | 44.94 | 3.59 | 1.82 | 8.49 | 24.62 |
| 11/2x12 | 21400 | 28.7 | 1.5 | 44.24 | 32.24 | 46.74 | 34.74 | 4.09 | 2.12 | 9.46 | 12.32 |
| 11/2x18 | 21400 | 34.1 | 1.5 | 56.24 | 38.24 | 58.74 | 40.74 | 4.09 | 2.12 | 9.46 | 18.32 |
| 11/2x24 | 21400 | 39.6 | 1.5 | 68.86 | 44.86 | 71.36 | 47.36 | 4.09 | 2.12 | 9.46 | 24.94 |
| 13/4x18 | 28000 | 50.7 | 1.75 | 57.38 | 39.38 | 60.38 | 42.38 | 4.65 | 2.38 | 9.97 | 18.37 |
| 13/4x24 | 28000 | 58.2 | 1.75 | 69.38 | 45.38 | 72.38 | 48.38 | 4.65 | 2.38 | 9.97 | 24.37 |
| 2x24 | 37000 | 83.5 | 2 | 75.68 | 51.68 | 79.18 | 55.18 | 5.81 | 2.69 | 13.03 | 24.48 |
| 2 1/2x24 | 60000 | 149 | 2.5 | 79.18 | 55.18 | 83.18 | 59.18 | 6.49 | 3.12 | 13.76 | 24.6 |
| 2 3/4x24 | 75000 | 174 | 2.75 | 81.34 | 57.34 | 85.84 | 61.84 | 7 | 3.25 | 15.09 | 24.65 |
