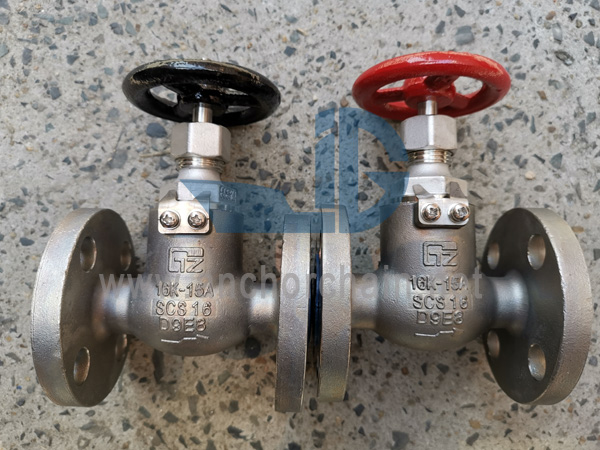

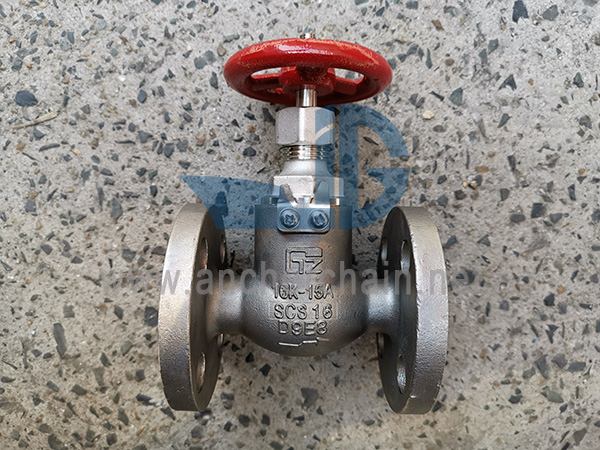

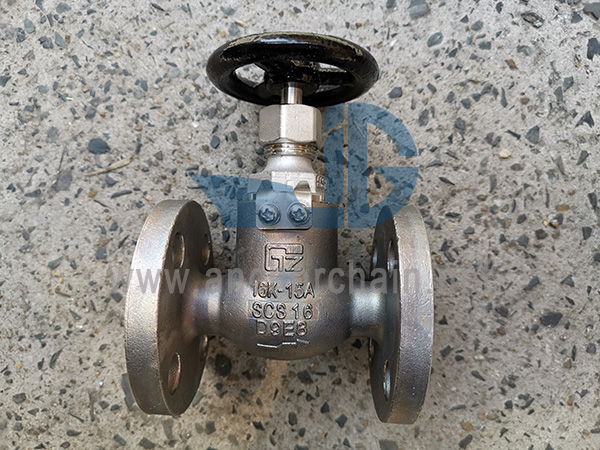

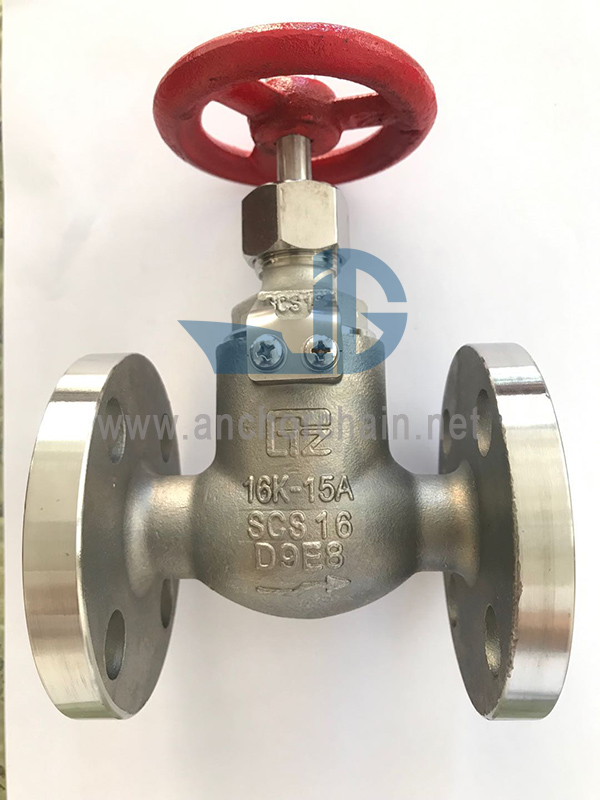

JIS F 7301 5K SCS16 Steel Globe Valvesmarine Diver Globe Valvae vel Marine Brass Globe Valvae dici possunt sicut Steel Marinus Steel/Brass Siste Valve.Function: Aperi/Close organum systematis Design Standard: JIS F7301-1996
*DN15-DN40 mitram Habes, DN50-DN65 mitram obseratis
Materia principalis:
1-Corpus: Steel(SCS16)/SUS316L
2-Disc: Steel(SCS16)/SUS316L
3-Stemma: Steel(SCS16)/SUS316L
4-Bonnet: Steel(SCS16)/SUS316L
5-Handwheel: Ferrum (FC200)
IMPA Code | Magnitudo | Face ad Face (L.) | Fringilla diam. (D) | Pix (C) | No of Bolt Hole | h | t | H | D2 |
750121 | 15 | 100 | 80 | 60 | 4 | 12 | 9 | 130 | 80 |
750122 | 20 | 110 | 85 | 65 | 4 | 12 | 10 | 140 | 100 |
750123 | 25 | 120 | 95 | 75 | 4 | 12 | 10 | 160 | 125 |
750124 | 32 | 140 | 115 | 90 | 4 | 15 | 12 | 170 | 125 |
750125 | 40 | 160 | 120 | 95 | 4 | 15 | 12 | 190 | 140 |
750126 | 50 | 210 | 130 | 105 | 4 | 15 | 14 | 235 | 140 |
750127 | 65 | 250 | 155 | 130 | 4 | 15 | 14 | 260 | 160 |
